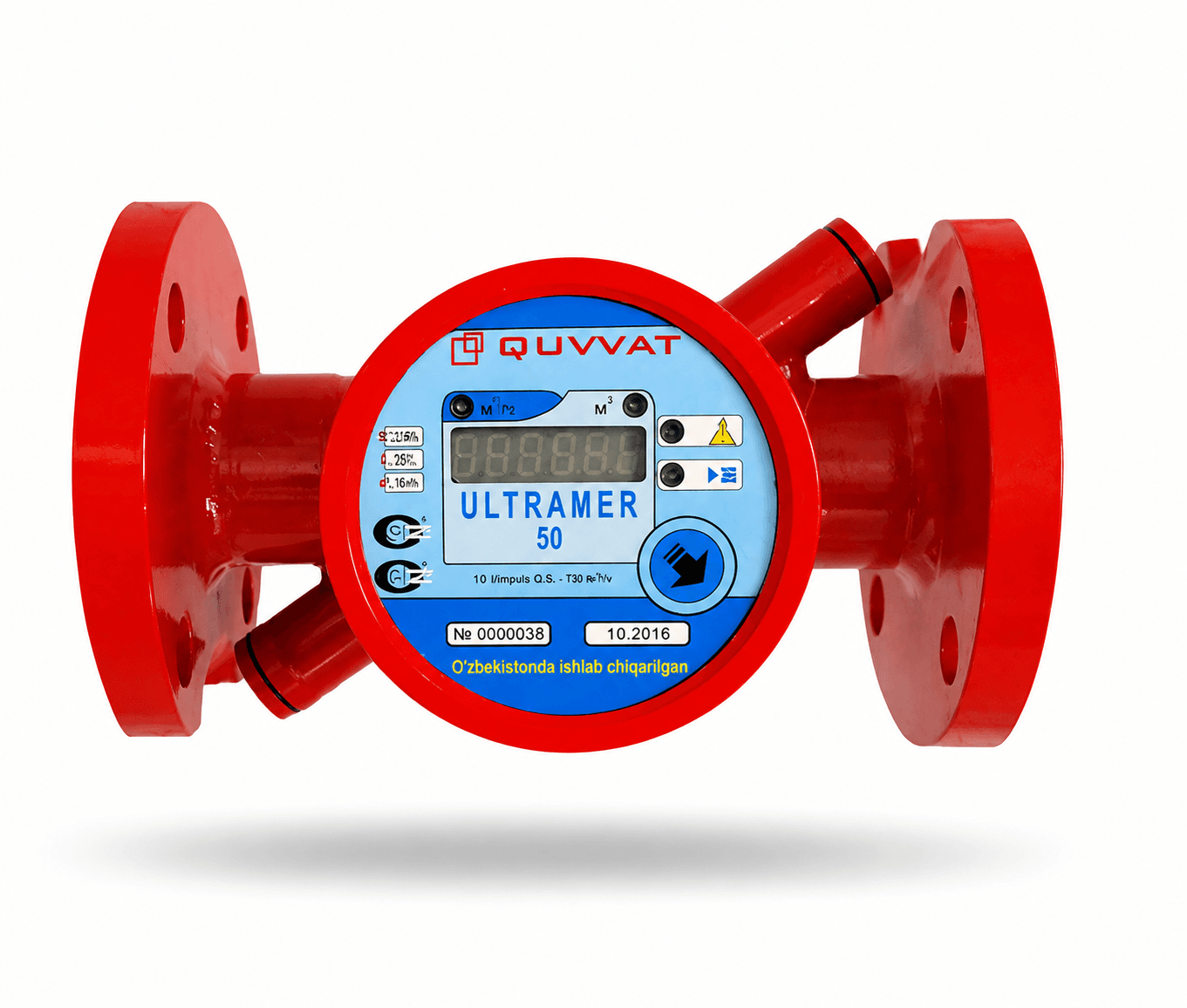

Summator-3M1 Heat Meter with 2 ULTRAMER DN32 Ultrasonic Flow Meters

Подробное Описание Товара

The Summator-3M1 heat meter with two ULTRAMER DN32 ultrasonic flow meters is designed for measuring, displaying and recording thermal energy, heat carrier flow, temperature, pressure and operating time in open and closed water heating systems. The system consists of the Summator-3M1 computing unit and two ULTRAMER DN32 ultrasonic flow meters. It provides accurate measurement and monitoring of heat energy consumption in heating and hot and cold water supply systems. The heat meter can be used for commercial and technical metering of thermal energy in residential, commercial, municipal and industrial facilities. Main Features: • Brand: Summator • Model: Summator-3M1 • Flow meters: 2 × ULTRAMER DN32 • Metering type: Ultrasonic • Nominal pipe diameter: DN32 / 32 mm • Water type: Cold and hot water • Connection type: Flanged • Heat carrier temperature: from +5°C to +150°C • Operating pressure: up to 2.5 MPa • Temperature measurement range: 0°C to 150–200°C • Differential temperature measurement range: 0°C to 150–180°C • Supported temperature sensors: 100P, Pt100, 500P, Pt500, 1000P, Pt1000 • Temperature sensor accuracy classes: Class 1 or Class 2 Advantages: • Accurate ultrasonic flow measurement • Two ULTRAMER DN32 flow meters included • Measurement and recording of thermal energy • Measurement of flow, temperature and pressure • Suitable for open and closed heating systems • Suitable for commercial energy metering • Reliable operation in heating and water supply systems • Flanged connection • Suitable for residential, commercial and industrial facilities Applications: The Summator-3M1 heat meter is suitable for heating networks, heat supply systems, hot and cold water supply systems, residential buildings, commercial facilities, industrial enterprises, heat substations and other facilities requiring accurate thermal energy metering.
